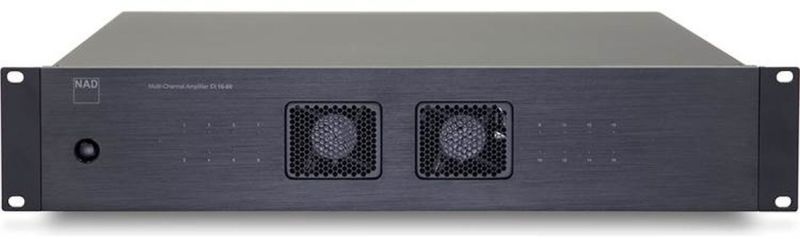

NAD® 16 Channel Integrated Amplifier

NAD

Model #:

CI 16-60 DSP

Model #: CI 16-60 DSP
958982
NAD
$3,299.00

At a Glance

Like every NAD product, legendary high performance is at the heart of this 16 channel amplifier. Promising reliability, stability and a variety of installer-friendly features, this amplifier will redefine the way you view high performance distributed audio systems.Read More

Price Starting At
$3,299.00

Get to know this product.

Product Overview

Product Overview

Smart CI Solution with Audiophile Performance for Distributed Audio

Highly versatile and robust, the CI 16-60 is built for the demands of professional installations. This amplifier delivers a conservative 60 watts per channel at 8 ohms into all of its 16 channels with each pair of channels bridgeable to 140 watts per channel if more power is desired. The hybrid digital amplifier platform delivers stable and efficient power with high current capability all in a compact 2U rack space.

The CI 16-60 DSP uses a customized version of the proven Hypex UcD output stage to deliver great load invariant power with extremely low distortion and noise in the audible range. Every detail of this design has been carefully executed to bring out the best possible performance. Meticulously designed and built to deal with the demands of the custom installation market, the CI 16-60 can effortlessly handle long cable runs and difficult speaker loads.

NAD is keenly aware that reliability is paramount for a professional installer so all models will be based on tried and true amplification platforms delivering stable and reliable performance. The CI 16-60 amplifier is stable at 4 ohm impedance. A variety of power on methods are available as well as an Eco mode setting for minimal power consumption.

16 Channels X 60 Watts @ 8 Ohms

Any consecutive channel pair bridgeable to 2 x 140 Watts @ 8 ohm.

Renowned NAD sonic signature

2U Rack Height- saves valuable rack space

Platform accessed through IP control

Custom web app manages DSP calibration, Input assignments and more

Effectively handles long cable runs and difficult speaker loads

Dual global Inputs/Outputs

5W Standby Mode, 3W Network Standby

12V Trigger In; IR In/Out

Multiple power-up options and Eco Mode

Universal AC Power Supply

Useful Documents
User Manual
Quick Set Up
Data Sheet
Specifications

General Specs

Channels16
Frequency Response20 Hz – 20 kHz
Color Finish NameBlack
Product Weight (lbs.)22.7
ColorBlack
Shipping Depth (in.)17.19
Shipping Width (in.)19.06
Shipping Height (in.)3.94
Voltage100-240
Frequency50/60

General

Continuous output power into 8 ohms60 W (all channels driven, 1kHz 0.05% THD
65 W (two channels driven, 1kHz 0.05% THD
Into 4 ohms65 W (all channels driven, 1kHz 0.05% THD
105 W (two channels driven, 1kHz 0.05% THD
Continuous output power into 8 ohms at Bridged mode140 W (all channels driven, 1kHz 0.05% THD
240 W (two channels driven, 1kHz 0.05% THD
THD (1 W to 50 W, 8 ohms and 4 ohms)0.05 % (20 Hz – 3 kHz)
0.2 % (3kHz – 20 kHz)
Signal-to-Noise Ratio80 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
Clipping power (all channels driven)60 W (1 kHz 8 ohms 1 % THD)
80 W (1 kHz 4 ohms 1 % THD)
Clipping power into 8 ohms at Bridged mode150 W (1 kHz 1 % THD – all channels driven)
250 W (1 kHz 1 % THD – two channels driven)
IHF Dynamic Power (all channels driven)8 ohms: 65 W
4 ohms: 125 W
IHF Dynamic Power (two channels driven)8 ohms: 70 W
4 ohms: 125 W
IHF dynamic power (Bridged mode, all channels driven)8 ohms: 270 W
IHF Dynamic Power (two channels driven)8 ohms: 280 W
Peak output current15 A (1 ohm, 1 ms)
Damping factor110 (20 Hz to 1 kHz 8 ohms)
Frequency response±1dB (20 Hz – 20 kHz)
Channel separation60 dB (1 kHz)
55 dB (10 kHz)
Maximum undistorted input level2900 mV
Input sensitivity (for 50 W in 8 ohms, maximum volume)760 mV
Input impedance20 kohms//220pF
Analog input audio sense threshold (one channel with signal)3 ± 0.5 mVrms (ref. 100 Hz – 10 kHz)
Trigger IN level3 – 30 Vdc
Standby power0.5W
