Product Dimensions 3.35"h x 3.24"w x 1.02"d

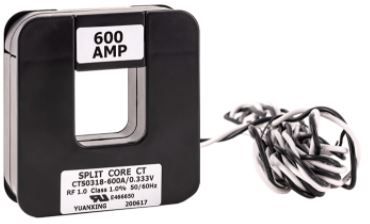

SEM-600A1 is a 600 Amp, split-core, clip-on current transformer. For use with the SmartEnergy MonitorRead More
Rated Primary Input: 600A
Secondary Output: 0.333 VAC at rated current.
Accuracy: ±1% from 10% to 130% of rated current.
Phase Angle: less than 2 degrees at 50% of rated current.
Operating Temperature: 15°C to +60°C
Secondary Burden Impedance: ≥ 100K Ω
Lead Wire: 8 Foot (2.4m) leads, AWM 1015, 0.34mm2 (22AWG), 600V, WHITE/BLACK
General Specs | |
| Depth (in.) | 1.02 |
| Width (in.) | 3.24 |
| Height (in.) | 3.35 |
| Shipping Depth (in.) | 7 |
| Shipping Width (in.) | 11 |
| Shipping Height (in.) | 11 |
| Amp | 600 |
| Color Finish Name | Black |
| Manufacturer Warranty | 2 Year |
| Voltage | 600 |
| Product Weight (lbs.) | 0.67 |
