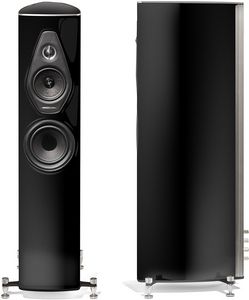

Sonus faber® Olympica Nova II 7" Piano Black Floor Standing Speakers

Product Overview

Essence Of A Brand

Since 1983, many moments have marked the history of Sonus faber; the launch of the Olympica Collection 6 years ago is one of them. One of the first lines presented as a complete family of products, but above all, the very first one to feature original drivers, entirely designed in Sonus faber.

Olympica Nova is the second generation of the iconic family of 2013, improved in its form and substance, imbued with the timeless values that inspired us in creating the original line. The result is a new Collection that embraces the most advanced technologies that already enhance our most prestigious creations.

Organic Shape

The lack of flat and parallel walls improves enclosure performance and maintains the typical asymmetrical Lute shape of first generation Olympica. The asymmetrical shape of the cabinet is an original design concept that allows versatile positioning of the speakers to tune the bass response in any room.al balance of the project. Inspired by nature, the lines follow the flow of a circular spiral motion, achieving a more organic cabinet structure. No longer just a functional element added to handle airflow, the reflex duct is now fully integrated into the cabinet, further improving the speed and transparency of sound.

Wood

Just like the cabinet sides, the front baffle and the top are made in the walnut or wenge hand-finished natural wood, set in a solid die-cast aluminum plate. Our designers wished to pay homage to the most representative material of Sonus faber, making it even more of a standard-bearer.

Natural Leather

The natural leather embellishes the Voice of Sonus faber, the brand’s iconic configuration of tweeter and midrange and enriches the aesthetic rings around the woofers. Genuine Italian leather that, as per our brand’s tradition, is applied by hand in the production department in Vicenza.

Tweeter

The 28 mm silk soft dome tweeter features the DAD™ technology (Damped Apex Dome™) that enhances the smoothness and extension in the high frequency by applying local dampening to the apex typically responsible for anti-phase behavior of soft dome diaphragms. The DAD™ structure has been totally redesigned; a solid piece of aluminum die-cast includes both arch and ring on the dome to increase the strength and accuracy of the system.

Reflex Port

The solid piece of extruded aluminum that completes the Stealth Ultraflex™ system, an extremely low-turbulence porting system, is inherited from Homage Tradition models. Favoring the profile of sea waves, the structure facilitates airflow through the duct while controlling its speed and reducing the distortion-causing turbulence.

Crossover

The crossover network implements Paracross Topology™, making the crossover less sensitive to radio-frequency interference, improving transient response and lowering noise floor. The filtering topology features new exclusive Clarity Cap capacitors, customized for Sonus faber.

Midrange

The midrange is completely designed and developed in Sonus faber laboratories. Its cone is realized cooperating with Kurtmueller and represents the most advanced stage of the traditional Sonus faber recipe: an air dried non pressed blend of cellulose pulp and other natural fibers: kapok and kenaf. This natural drying process gives the diaphragm a slightly rough surface of varying density and contributes damping and distributing cone resonances while guaranteeing a natural sound, increased transparency and details. The precious phase-plug enhances the mid-hi frequencies emission while proudly stating that the Olympica Nova collection is Made in Italy.

Structural Rigidity

Similar to the Homage Tradition and Reference Collections, the walls are made with eight layers of bended wood, providing the cabinet with extreme rigidity. Inside the cabinet, carefully placed structural ribs are used as reinforcement to reduce vibration and to handle the overall power of the transducers movement.

Woofer

The woofer cone has been developed in cooperation with Kurtmueller and it’s based on an exclusive sandwich construction technique: two external layers of cellulose pulp are combined with a layer of hi-tech syntactic foam in between. This low mass and hi rigidity cone construction allows for a perfect reproduction of the low frequencies while guaranteeing absolute tonal coherence with the midrange. This transducer is assembled in Italy.

Supports

We have completely redesigned the supports, crafting them from solid aluminum bottom plates with steel spikes, taking inspiration from the Homage Tradition and Reference Collections, to guarantee greater strength and solidity.
